Why BPMN in Appian matters for every CEO who wants results

When we at ICX talk about process management and automation, we think not only about "drawing processes", but also about making those models "alive", executable and governed. In that sense, BPMN (Business Process Model and Notation) works as the standard language that helps us align business vision and execution. But it only makes sense when connected to a platform that executes it. This is where Appian comes in.

What I want to share with you in this blog is how, from ICX, we approach the implementation of BPMN processes within Appian, what BPMN elements (events, activities, gateways, etc.) we map and how Appian powers that layer with automation capabilities. The goal: that "what you see in the diagram" becomes "what the system does".

Why use BPMN in Appian?

First, let's get something straight: Appian is not a pure BPMN engine - there are user comments pointing out that Appian does not implement the BPMN 2.0 standard in its entirety. Let's be frank, let's say that Appian has its own flavor of BPMN. But even so, Appian considers that BPMN diagram as the ideal starting point for building a process that is executable.

When we model in BPMN and then bring it into Appian, what we do is translate that graphical notation into a "process model" within Appian that already contains the logic, interfaces, data, rules and integrations. In other words: we don't "copy and paste", but rather the BPMN model is actually converted and executed within Appian.

Moreover, at ICX we see additional value: by using BPMN within Appian, we can maintain traceability between what the business defined (modeling) and what happens in each instance of the process (monitoring, measurement and optimization). This bridges the gap between design and operation.

BPMN elements and their correspondence in Appian

To explain in depth how we "map" BPMN within Appian, it is crucial to detail the main flow objects events, activities and gateways and describe how we translate their logic and function to the platform environment. Each of these elements plays an essential role in process orchestration; therefore, from ICX, we interpret their structure and particularities to ensure that the automation maintains fidelity to the original model and, at the same time, enhances the process with the technical capabilities offered by Appian. Next, we discuss how we establish this practical correspondence between the standard notation and its actual implementation, ensuring that the business logic is executed without loss of information or ambiguities.

Events (Initial, intermediate and final events)

In BPMN, events represent "something that happens", not actions executed by someone. We have the following events:

• Initial event: triggers the start of a process.


• Intermediate event: can interrupt, wait for a timer, handle exceptions, receive messages.


• End event: indicates the conclusion of the process or of a branch.

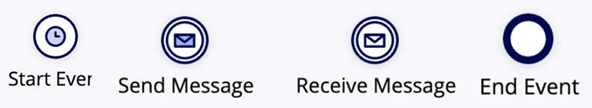

• When we translate that to Appian, the initial event could correspond to an automatic "start" (e.g., a scheduled trigger, an API call or an external event). Appian allows a process model to have multiple entry points or to launch instances from interfaces or signals.

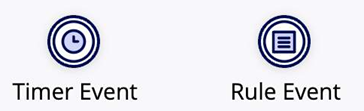

An intermediate event in Appian can be represented by Wait Nodes, Timer Events or by signal/message events. For example, we can have a node that waits until a deadline, or waits until an external message arrives (e.g. confirmation from another system). Appian allows to configure these "intermediate events" within the process model flow.

Finally, the final event is simply the closing of the flow in Appian: once the tasks have been completed, we reach the instance completion state.

Activities (tasks, sub-processes, user tasks, service tasks)

In BPMN, an activity indicates "something that is done": it can be a simple task (a user task, service task, script) or a sub-process.

In Appian we map activities to different nodes of the process model:

User Task (User Task): in Appian it corresponds to a "Human Activity" node where someone must intervene, fill a form, approve or reject.

Service / automatic task: corresponds to automatic nodes that execute business rules, calls to web services or API integrations.

Sub-processes / embedded processes: you can encapsulate repetitive logic in reusable sub-processes and call them from the main process.

When we model a sub-process in BPMN, what we do in Appian is to define another reusable process model or module that can be invoked (or nested) from the main one.

Gateways (flow control gates)

Gateways in BPMN allow you to branch, join or control the flow depending on conditions. The most common types are:

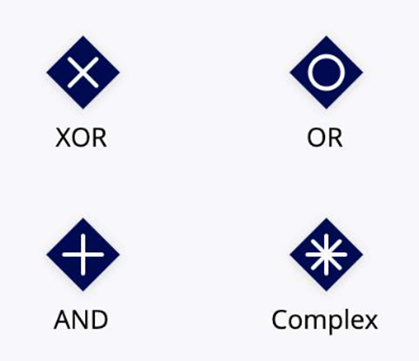

• Exclusive gateway (XOR)
• Parallel gateway (AND)
• Inclusive gateway (OR)
• Complex gateway, which depends on several conditions (Complex).



Within Appian, these gateways become decision nodes or conditional paths within the process model. In other words, they help us to direct the flow within a process. For example, an exclusive gateway you represent as a decision with conditions ("if A → route 1, if B → route 2"). A parallel gateway you configure as routes that run in parallel and converge. You can also use more advanced logic to handle inclusive or complex gateways.

It is important to remember that not always all the "exotic" gateway types of the BPMN 2.0 standard are directly supported, but the most common ones (exclusive, parallel, inclusive) are available.

Connectors and flows

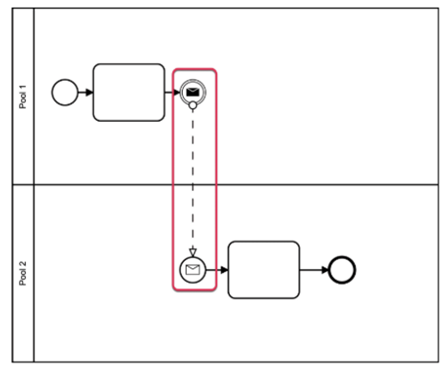

In BPMN, connector objects are sequence flows, message flows, associations. In Appian, the "sequence flow" is the normal connection between nodes within the process model. As for message flows (when a process sends/receives messages with another process or with external systems), in Appian they are represented by integration nodes or signal/message waiting nodes.

We can also relate data to activities (e.g., passing data between tasks) and this is handled by process, context and data integration variables. In Appian, the modeler allows defining parameters, variables and mapping data between nodes.

How to implement a "real" BPMN process in Appian (step by step)

Here I tell you how I would do it (from ICX) if we were building a key process using BPMN + Appian.

Initial modeling in BPMN

We start with the stakeholders in your company that are relevant to the process to be lifted. We create a BPMN diagram (version 2.x) containing the events (start, intermediate, end), activities (users, services, sub-processes) and gateways that reflect the business rules. At this point, we also define the relevant messages, exceptions, timers.

Validation with business

We present the BPMN model to the steering committee / sponsors to ensure that the flow logic meets expectations (which routes, who does what when, which events trigger what).

Transformation/import to Appian process model

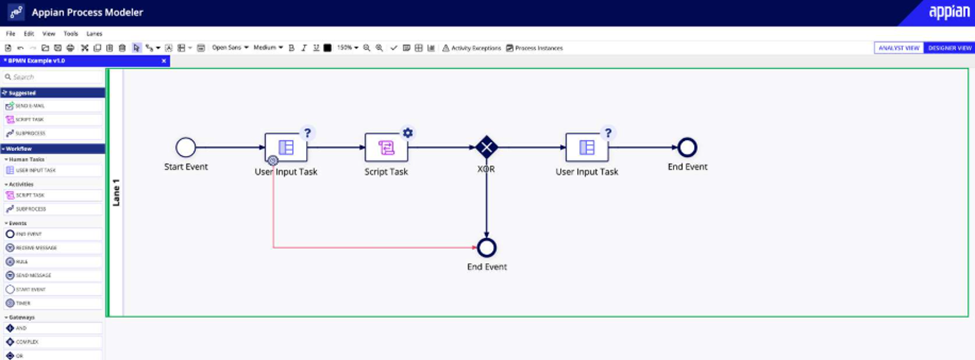

In some cases we use tools like "BPMN Transformer" (available on the AppMarket) to help import BPMN diagrams into Appian and export processes between Appian and BPMN. That step gives us an initial baseline of the process in Appian, which we then adjust, and so we don't start from scratch, it's a great time saver.

Once in Appian, the diagram becomes a "Process Model Object" that can be executed.

Definition of nodes, variables and logic

In Appian we define process variables, activity nodes (users, services), gateway conditions, and exception handlers. We configure timers, wait nodes and intermediate events as defined in the BPMN model.

Integrations and external calls

For automatic activities we use connectors, APIs, business rules or integration with other systems (ERP, CRM, external services). Appian allows to work with integrations either to bring data from other systems or to share data in Appian externally.

Building interfaces (forms, data views)

User activities must have "screens" or forms for the actors to interact. In Appian we link the process model with interfaces (UI) and with data so that the flow makes end-user sense.

Testing and simulation

We run test instances, simulate alternative paths, errors, timeouts. We observe if intermediate events (timers, exceptions) jump as expected, if conditional paths work correctly.

Process monitoring and dashboards

A key advantage is that each instance of the process is monitored: from Appian you can see the "status" of each instance, its pending tasks, times, bottlenecks. With that visibility you can feed back improvements or adjustments to the BPMN model.

Continuous optimization

Based on real statistics (times, route frequencies, exceptions), we go back to the BPMN model - refine gateways, times, alternate routes - and debug the logic in Appian. That way we keep the process alive.

What Appian brings to BPMN from automation

When we combine BPMN with Appian, we're not just generating easy-to-read diagrams: we're enabling execution, control and continuous improvement. Some key advantages that we bring (and that you should value as an executive) are:

Orchestration of people, systems and data.

Appian not only executes human tasks, it also integrates systems (via API, connectors) and orchestrates the flow between them. In this way, a BPMN process can trigger automatic integrations, rule processing, microservice invocations, exception handling, all under the same model.

Intelligent automation (RPA, rules, AI)

Appian has capabilities to incorporate RPA (robots) into the process flow. In this way, repetitive tasks can be executed without human intervention, and the BPMN process "commands" the robots when it's time. The beauty is that we can also include business rules or automated decisions (e.g. decision engines) so that gateways do not rely on static conditions alone.

In addition, Appian offers AI-driven suggestions within the process modeler to guide the modeler. This is especially useful if you are new to Appian.

Native model execution

The BPMN model does not stay in the document, it becomes native execution in Appian. In other words: we do not "interpret" the diagram externally, but Appian directly executes what you modeled. And it is here where lies the main difference between Appian and most BPMN tools. This reduces divergences between design and operation and speeds up the time to go live.

Transparency and real-time monitoring

Each instance follows its traceability: who did what, in what time, on what path it is. Appian provides real-time dashboards and reports to monitor performance, detect bottlenecks and propose improvements. This is essential for executives, because it allows them to govern processes with real data.

Gradual evolution and agility

Because Appian is a low-code platform, when we identify improvements in the BPMN model (e.g., change a gateway condition, adjust a timer, add an exception), we can implement them quickly without going through heavy development cycles. And best of all, without relying on the IT department to make changes. I have nothing against them, but by eliminating this dependency, it gives the business the flexibility to respond to change with speed.

Governance and governance

Appian allows you to enforce controls, permissions, process versioning, access rules and auditability. In a corporate environment, this means that those who manage the platform can define who modifies processes, who runs what routes, who sees what data, all within a robust governance layer.

Final tips and notes

We could go on with more, but to keep this blog from getting too long I will end with some tips and considerations that we apply at ICX so that the process does not get out of hand:

• Not all elements of the BPMN standard are supported: we have to simplify or adapt certain very exotic nodes.


• Avoid overly complex diagrams: if you have 20 nested gateways and multiple routes, maintenance will be difficult. It is advisable or rather essential to modularize with sub-processes.


• Be very clear about the data flowing between activities to avoid inconsistencies.


• Define exceptions and error handling explicitly: what happens if something fails, if a system does not respond, if a timer exceeds the deadline.


• Implement key metrics (times, volumes, preferred routes) from the beginning to have inputs for improvement.


• Start with a pilot that impacts a critical but limited process, measure results, gain confidence, then scale and avoid Big Bang type project.


• Involve business (including top management) and technology from the beginning: the BPMN modeling must be agreed upon, because it will be executed later.



If you have come this far, it is because you realize that this topic can have an impact on your company. When we at ICX work with BPMN and bring it to Appian, we create a powerful connection between strategic vision and automated operation. With BPMN flow objects (events, activities, gateways) we define the behavior of the process; and with Appian we add the ability to execute, monitor and optimize it continuously.

For a C-level executive or manager, the BPMN + Appian combination allows the organization's key processes to not remain in static documents, but to literally "come to life": users, systems and rules interact in a controlled, measurable and, above all, adaptable flow. If you are exploring how to take your process transformation initiatives to the next level, that integration is just the bridge that turns modeling into action.
